Scaling the Entire Mesh

Scaling the mesh is important as the units of the model must be in meters before running an analysis.

If the surface or volume mesh was imported using different units, then the process below must be followed.

To scale the entire mesh inside Simcenter STAR-CCM+:

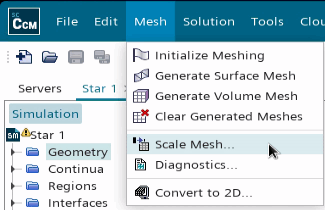

Use the Mesh > Scale Mesh... menu option:

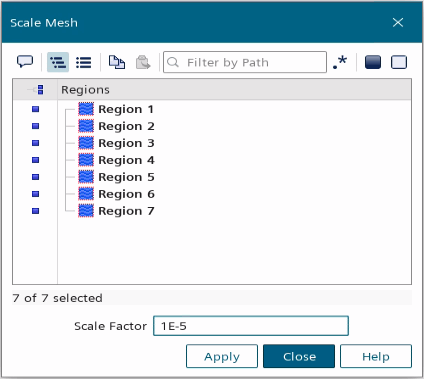

The Scale Mesh dialog opens with all regions selected by default.
Enter the scale factor into the Scale Factor text box. This value is used to multiply each dimension to scale the model.
Click Apply.
The progress bar at the bottom of the simulation tree view indicates the progress:

Once the operation is complete, the summary information is written to the Output window. This output is useful to check that the scale factor has been applied to the appropriate regions:

All active scenes are updated to reflect the new mesh configuration.
