Analyzing the Results

The progress of the solution can be followed using the scalar scene and the plots that you created previously.

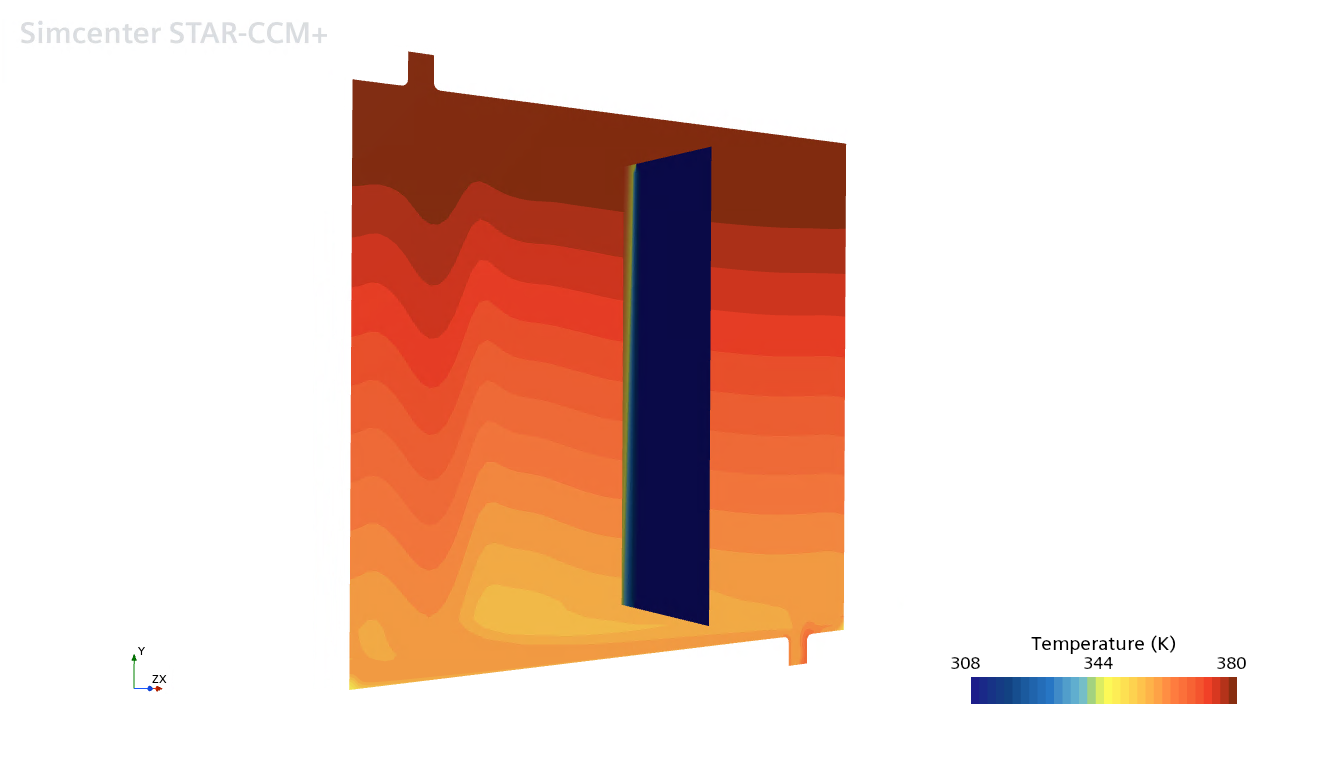

Temperature Distribution

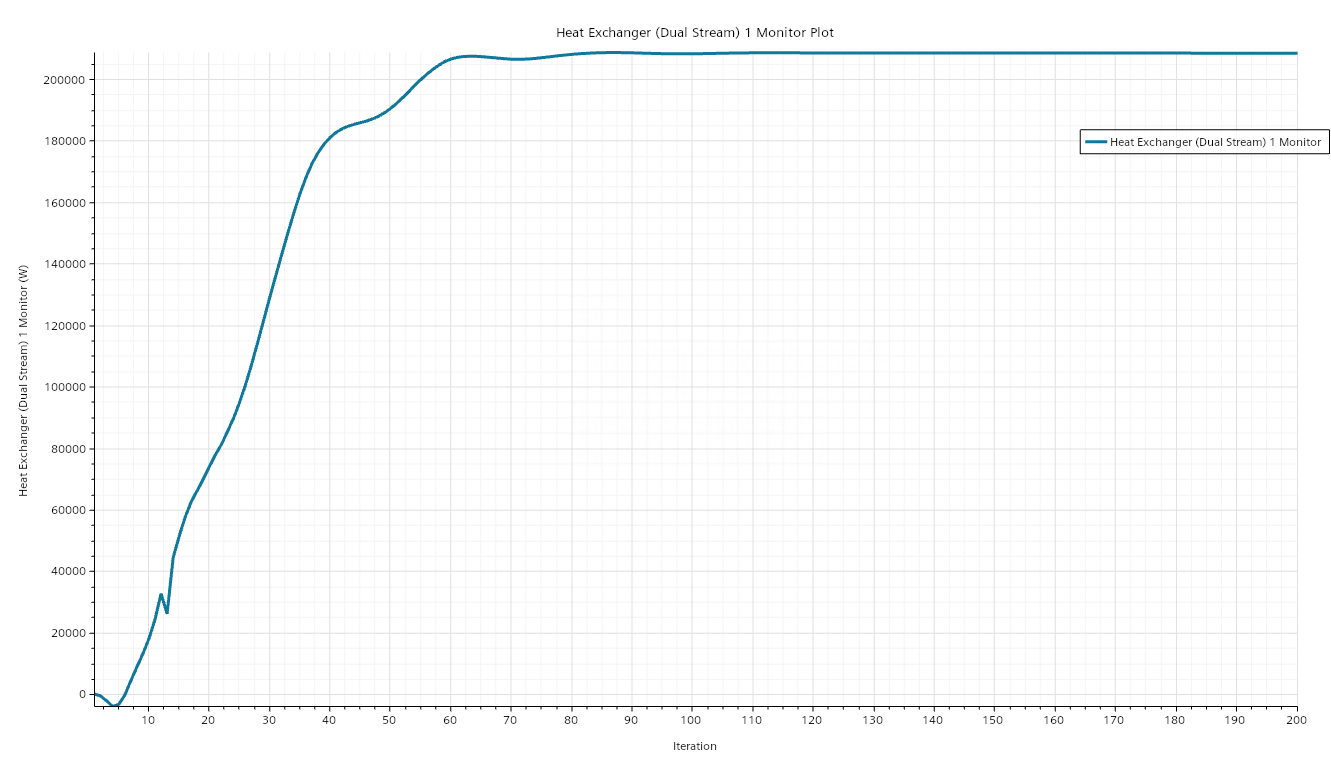

Heat Transfer: Once the simulation reaches its steady-state, you can see that approximately 208450 W of heat is transferred from the hot coolant to the cold air.

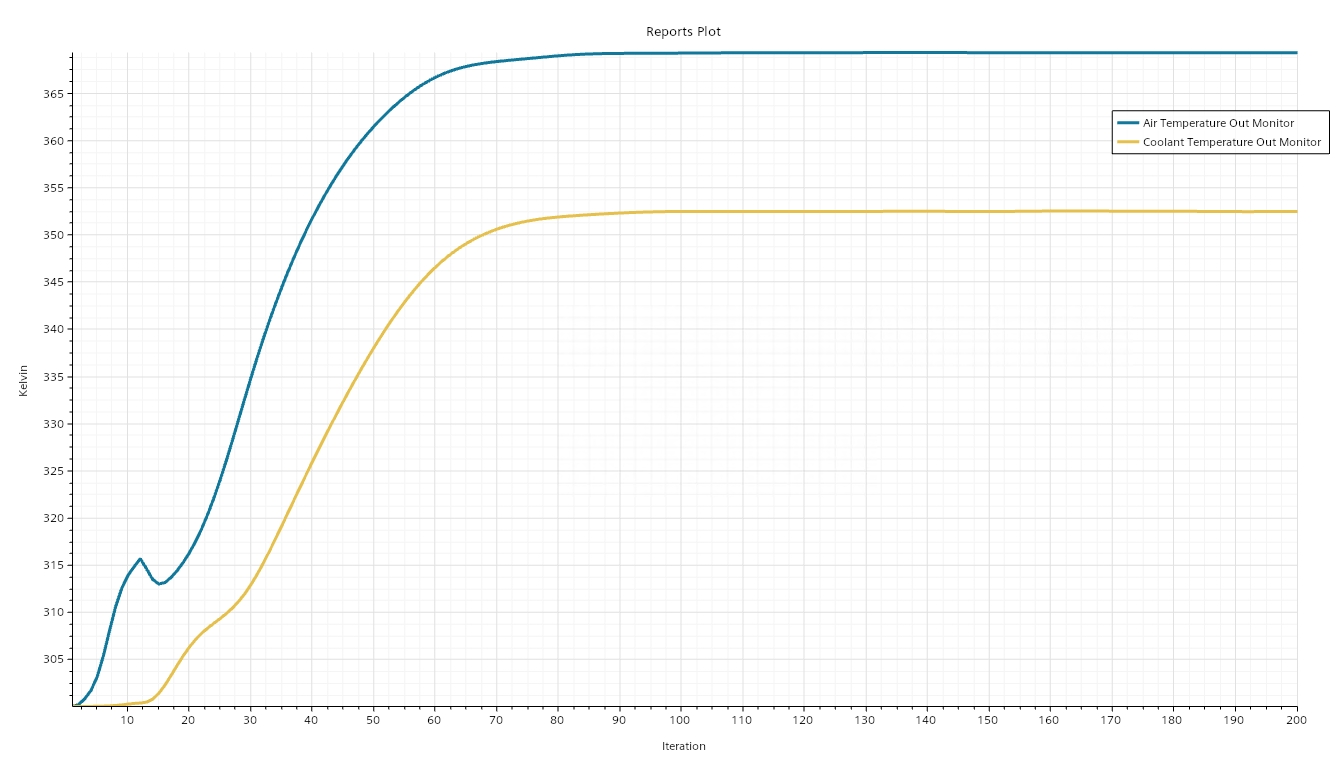

Outlet Temperatures
