Setting Reference Values

Define the reference values to make sure that the acceleration due to gravity acts in the expected direction.

To set the gravity reference value:

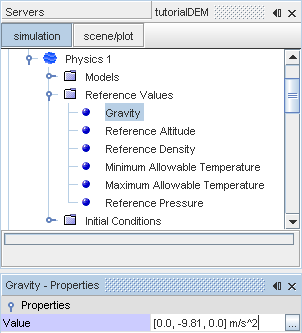

Select the Physics 1 > Reference Values > Gravity node and set the Value to [0.0, -9.81, 0.0] m/s^2.
