Defining the DEM Particle Interaction

The DEM particle interaction is used to define how the particles behave when they collide with one another and the region walls.

To define the grain to grain interaction:

Right-click the Physics 1 > Models > Multiphase Interaction > Phase Interactions manager and select New > Grain > Grain.
Right-click the Phase Interactions > Phase Interaction 1 > Models node and select the Hertz Mindlin contact model.
The Rolling Resistance model is selected automatically. The DEM Phase Interaction model is already selected.
Click Close.

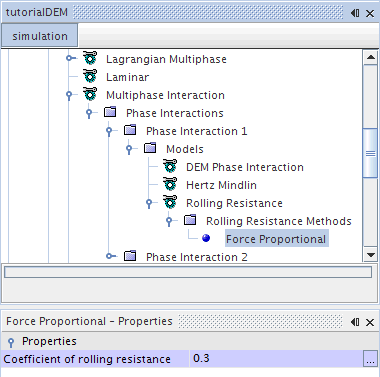

Select the Models > Rolling Resistance > Rolling Resistance Methods > Force Proportional node and set the Coefficient of Rolling Resistance to 0.3. The remaining properties can be left as default.

To define the grain to wall interaction, follow create a second particle interaction model with the following settings:

Right-click the Physics 1 > Models > Multiphase Interaction > Phase Interactions manager and select New > Grain > Wall.
Right-click the Phase Interactions > Phase Interaction 2 > Models node and select the Hertz Mindlin contact model.
The Rolling Resistance model is selected automatically. The DEM Phase Interaction model is already selected.

Set the following properties:


Node	Property	Setting
Hertz Mindlin	Static Friction Coefficient	0.8
	Normal Restitution Coefficient	0.5
	Tangential Restitution Coefficient	0.5
Rolling Resistance > Rolling Resistance Methods > Force Proportional	Coefficient of Rolling Resistance	0.3

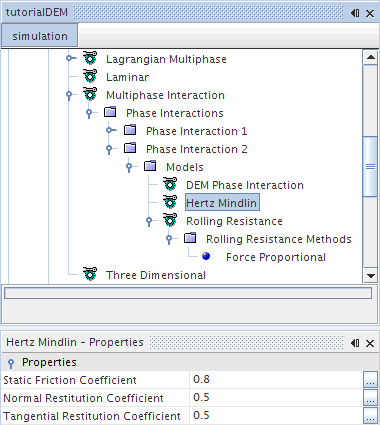

This part of the simulation tree along with the Hertz Mindlin - Properties window appears as shown below:

Save the simulation.
