Setting the Moving Conveyor Wall Condition

Define the conveyor boundary with a translational velocity to represent the movement of the belt.

To set the moving wall condition:

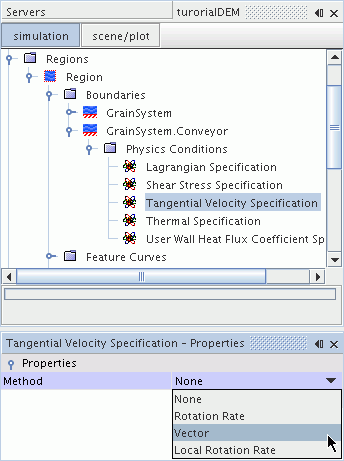

Expand the Regions > Region > Boundaries > GrainSystem.Conveyor > Physics Conditions manager, and select the Tangential Velocity Specification node and set the Method to Vector.

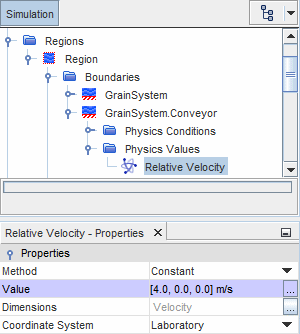

Select the Physics Values > Relative Velocity node and set Value to [4.0, 0.0, 0.0] m/s.
Save the simulation.
