Selecting Physics Models

Physics models are required to define the behavior of the multiphase continuum.

To set the physics models:

For the physics continuum Continua > Physics 1, select the following models, in order:


Group Box	Model
Enabled Models	Three-Dimensional (Selected automatically)
Time	Implicit Unsteady
Material	Gas
Flow	Coupled Flow
Enabled Models	Gradients (Selected automatically)
Equation of State	Ideal Gas
Equation of State	Coupled Energy (Selected automatically)
Viscous Regime	Laminar
Optional Models	Gravity
	Lagrangian Multiphase
	Discrete Element Model (DEM)
	Multiphase Interaction (Selected automatically)

Click Close.
Open the Physics 1 > Models manager.

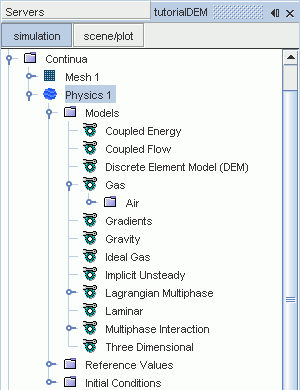

The selected models appear as shown below:

Save the simulation.
