Setting Solver Parameters and Stopping Criteria

Set the appropriate solver parameters and stopping criteria for the simulation. You specify the time-step and the maximum number of iterations per time step.

The flow stop relative solid fraction property for melting and solidification is implemented as a step function. Therefore, cells containing H2O in liquid state require a few inner iterations to realize that velocity is zero in the newly frozen cells. This process is dynamic and many cells can be ‘frozen’ at subsequent iterations during one time-step. Therefore, many inner iterations are required to make sure that results are accurate.

To set the solver parameters and stopping criteria:

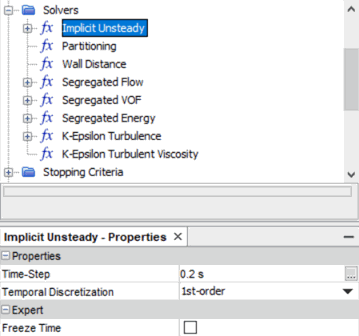

Edit the Solvers node and set the following properties:


Node	Property	Setting
Implicit Unsteady	Time-Step	0.2 s
Segregated Energy	Fluid Under-Relaxation Factor	0.5

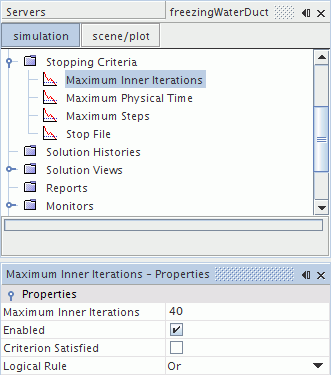

Edit the Stopping Criteria node and set the following properties:


Node	Property	Setting
Maximum Inner Iterations	Maximum Inner Iterations	40
Maximum Steps	Enabled	Deactivate
Maximum Physical Time	Enabled	Activated
	Maximum Physical Time	20.0 s

Save the simulation.
