Analyzing the Results

View and examine the results of the simulation.

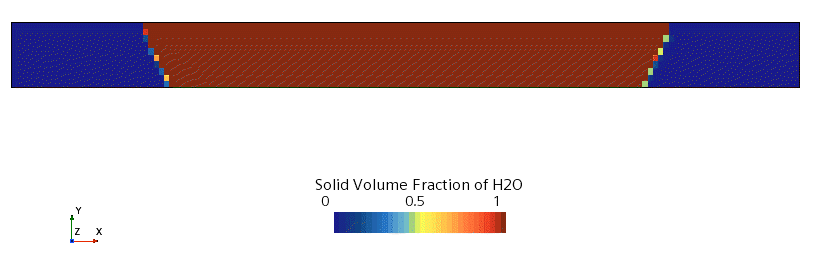

The freezing starts in the middle of the top wall. The water in the whole pipe eventually solidifies as time progresses.

Click the Solid Volume Fraction tab in the Graphics window.

The velocity in the frozen region must be zero since to the Flow Stop Relative Solid Fraction property is set to a value less than one.
Click the Pressure tab in the Graphics window.
Save the simulation.
