Selecting the Physics Models

Physics models define the primary variables of the simulation, including pressure, temperature, velocity, and what mathematical formulation is used to generate the solution.

In this case, the transient Reynolds-Averaged Navier Stokes equations are solved for using the K-Epsilon turbulence model and the Segregated Flow solver. The Volume of Fluid (VOF) model is activated before the melting and solidification option becomes available for Eulerian phases.

To select the physics models:

Right-click Continua > Physics 1 and click Select models....
In the Enabled Models group box, deactivate Two-Dimensional.

Select the following models in order:


Group Box	Model
Space	Axisymmetric
Time	Implicit Unsteady
Material	Multiphase Multiphase Interaction (Selected automatically)
Multiphase Model	Volume of Fluid (VOF) Gradients (Selected automatically) Segregated Flow (Selected automatically)
Viscous Regime	Turbulent Reynolds-Averaged Navier-Stokes (Selected automatically)
Reynolds-Averaged Turbulence	K-Epsilon Turbulence Realizable K-Epsilon Two-Layer (Selected automatically) Two-Layer All y+ Wall Treatment (Selected automatically)
Optional Models	Segregated Multiphase Temperature

Click Close.

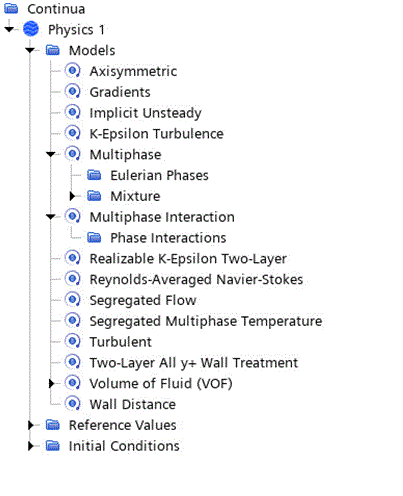

To review the models, open the Physics 1 > Models node.
Save the simulation.
