Visualizing the Morpher Displacement

Use the Morpher Displacement field function to analyze how the morpher affects the volume mesh and to compare the output with expected results.

Note	Morpher displacement is based upon values at vertices, not cell centers.

To visualize the morpher displacement:

In a scalar scene, select the Displayers > Scalar 1 > Parts node and set Parts to the boundary on which you want to visualize morpher displacement.
Select the Scalar Field node and set Function to one of the following:
- Morpher Displacement > Magnitude: The displacement magnitude of all components.
- Morpher Displacement > 0: The x-component of displacement.
- Morpher Displacement > 1: The y-component of displacement.
- Morpher Displacement > 2: The z-component of displacement.

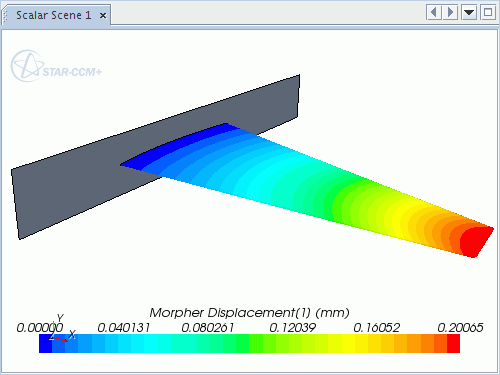

The following example shows a scalar scene that visualizes the y-component of morpher displacement.
