Visualizing the Temperature and Vapor Fraction

Create a scalar scene to view the results of the simulation.

You now create a scalar scene that displays the temperature of the fuel and cladding, and the coolant vapor volume fraction. Both field functions can be monitored while the solver is running.

To visualize the temperature and vapor fraction:

Create a scalar scene.
Rename Scenes > Scalar Scene 1 to Dual Scene.
Display the temperature in the fuel and cladding regions:
1. Select the Dual Scene > Scalar 1 > Parts node.
2. In the Properties window, click (Custom Editor) for the Parts property.

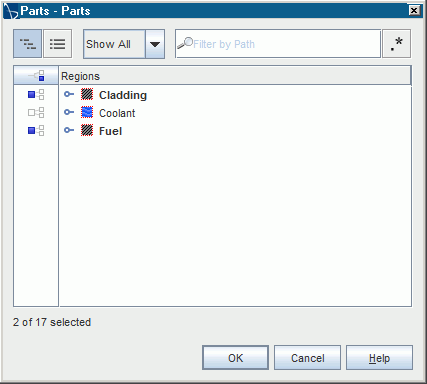

3. In the Parts - Parts dialog, right-click on a blank area and select Deselect All.
4. Select the Cladding and Fuel regions.
5. Click OK.

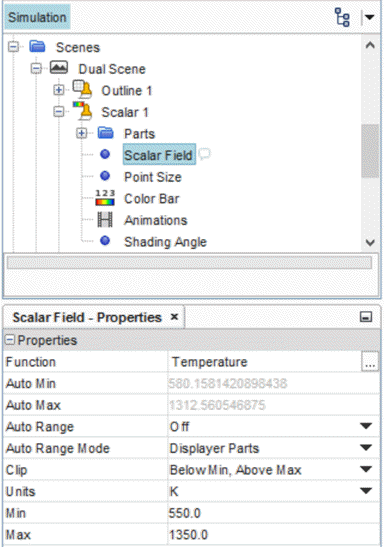

6. Select the Scalar 1 > Scalar Field node and set its Function property to Temperature.
7. Set the Auto Range property to Off.
8. Set the Min property to 550.0.
9. Set the Max property to 1350.0.
Create a new scalar displayer for the coolant:
1. Right-click the Dual Scene node and select New Displayer > Scalar.
2. Select the Scalar 2 > Parts node.
3. In the Properties window, click (Custom Editor) for the Parts property.
4. Select Coolant and click OK.
5. Select Scalar 2 > Scalar Field and set its Function property to Volume Fraction > Volume Fraction of Vapor.
Apply the Resize Domain transform to Outline 1, Scalar 1 and Scalar 2 to improve the aspect ratio of the scene:
1. Select the Dual Scene > Outline 1 node and set its Transform property to Resize Domain.
2. Select the Dual Scene > Scalar 1 node and set its Transform property to Resize Domain.
3. Select the Dual Scene > Scalar 2 node and set its Transform property to Resize Domain.

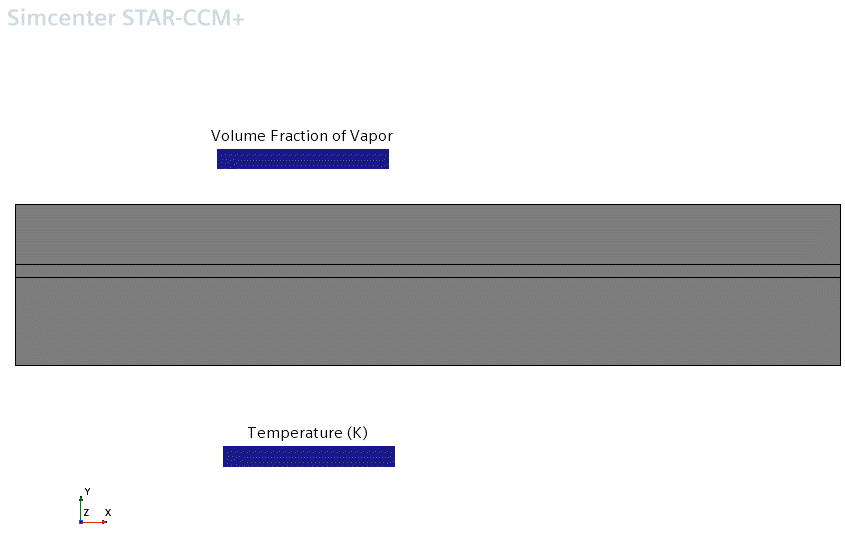

Using the mouse buttons, move the legends and adjust the scene so that it appears as shown.
Save the simulation.
