Setting the Fuel-Cladding Interface Properties

Define the Fuel-Cladding interface contact resistance.

You set the Fuel-Cladding interface contact resistance which models the gap between the two regions.

To set the Fuel-Cladding Interface properties:

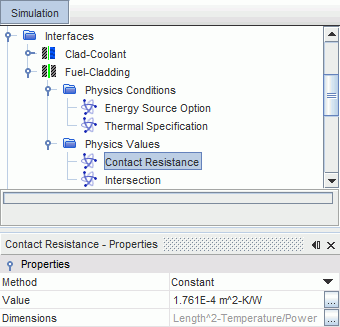

Select the Interfaces > Fuel-Cladding > Physics Values > Contact Resistance node and set Value to 1.761E-4 m^2-K/W.
Save the simulation.
