Setting the Solid Material Properties

Define the properties for the solid materials.

To set the properties for the solid materials:

Specify the material properties for the fuel.

Rename the Continua > Fuel > Models > Solid > Al node to UO2.

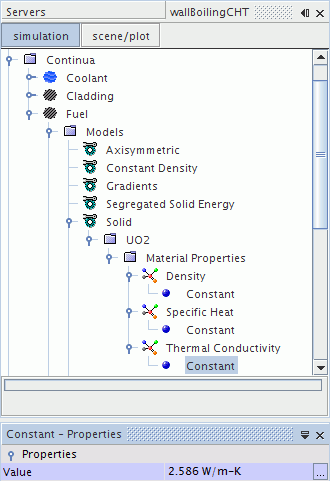

Edit the UO2 > Material Properties node and set the following properties:


Node	Property	Setting
Density > Constant	Value	10420.0 kg/m^3
Specific Heat > Constant	Value	327.7 J/kg-K
Thermal Conductivity > Constant	Value	2.586 W/m-K

Specify the material properties for the cladding.

Rename the Cladding > Models > Solid > Al node to Zircaloy.

Edit the Zircaloy > Material Properties node and set the following properties:


Node	Property	Setting
Density > Constant	Value	6579.0 kg/m^3
Specific Heat > Constant	Value	314.5 J/kg-K
Thermal Conductivity > Constant	Value	15.61 W/m-K

Save the simulation.
