Using Particle Tracks in Analysis

It is possible to visualize a particle track in a scene.

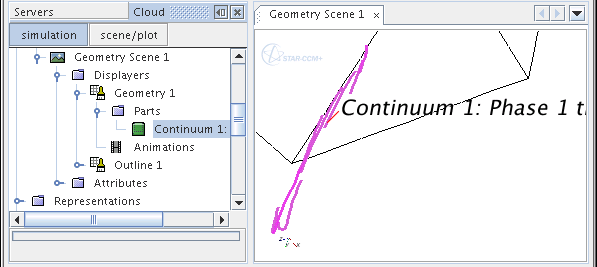

An example is shown below:

Particle tracks function similar to any other parts in a simulation in the following ways:

You can manage the particle tracks through the scene, or through an individual displayer as shown in the following screenshot.
A particle track can also serve as an input part for certain derived parts: a cell surface, section, threshold, or iso surface.
It is possible to select particle tracks when specifying the parts for an xyz internal table.

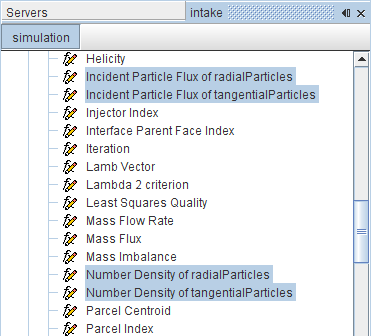

When you specify the scalar for an xyz internal table, you can also access specific field functions that correspond to the particle tracks.
