Setting Solver Parameters and Stopping Criteria

The Multiple Size-Group solver default under-relaxation settings give reliable convergence in one-speed cases. However, cases that have a high particle concentration, or multi-speed cases where each size-group can travel in a different direction, require additional relaxation. In this simulation, values of 0.7 and 0.5 respectively are appropriate.

The under-relaxation factors for the other solvers are set as high as possible. In this case, most settings are lower than the default values.

To set the solver parameters and stopping criteria:

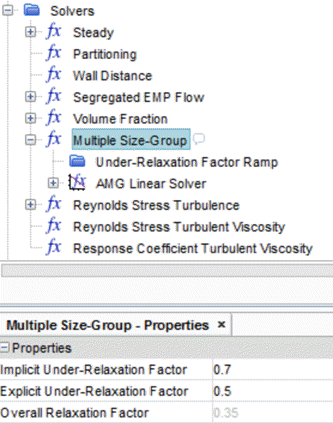

Edit the Solvers node and set the following properties:


Node	Property	Setting
Segregated EMP Flow > Phase Coupled Velocity	Implicit Under-Relaxation Factor	0.8
Segregated EMP Flow > Phase Coupled Velocity	Explicit Under-Relaxation Factor	0.4
Segregated EMP Flow > Pressure	Under-Relaxation Factor	0.1
Volume Fraction	Implicit Under-Relaxation Factor	0.8
Volume Fraction	Explicit Under-Relaxation Factor	0.2
Multiple Size-Group	Implicit Under-Relaxation Factor	0.7
Multiple Size-Group	Explicit Under-Relaxation Factor	0.5
AMG Linear Solver	Convergence Tolerance	0.001
AMG Linear Solver	Cycle Type	V Cycle

This simulation requires about 1500 iterations to achieve reasonable convergence.

Edit the Stopping Criteria node and set the following properties:


Node	Property	Setting
Maximum Steps	Enabled	Activated
Maximum Steps	Maximum Steps	1500

Save the simulation.
