Creating a Volumetric Control

Before Creating a Volumetric Control:

Prepare the Geometry Part that Defines the Volume.
See Preparing the Geometry Part that Defines the Volume.
Create an Automated Mesh Operation.
See Automated Mesh.

To Create a Volumetric Control:

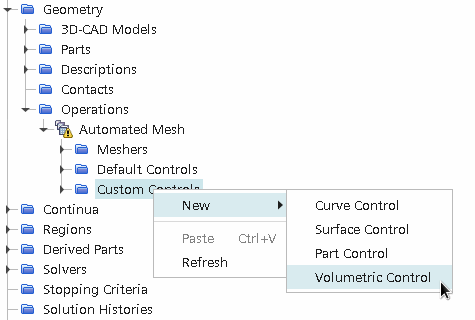

Right-click Geometry > Operations > Automated Mesh > Custom Controls and select New > Volumetric Control.
Select the new Volumetric Control node and click the area to the right of Parts in the Volumetric Control - Properties pane.

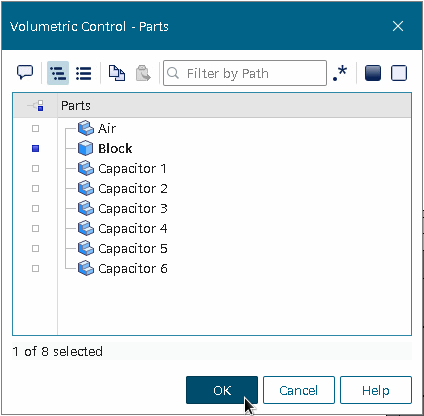

The Volumetric Control dialog appears.
Select the shape part that defines the volume.
Click OK
You now have a Volumetric Control which is ready for you to customize. Until you customize the Volumetric Control, the settings will remain the same as the Automated Mesh which contains the Volumetric Control.

Proceed to Editing Volumetric Control Values.
