Visualizing the Results

Visualize the manifold displacement and the internal stresses.

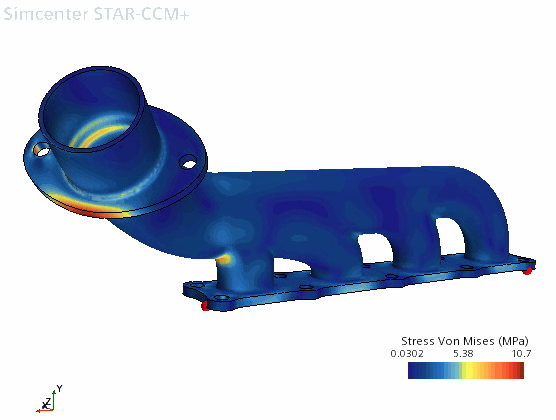

Open the Displacement and von Mises Stress scenes to visualize the expansion of the manifold in response to the thermal loads, and the internal stresses.

As you left the manifold almost free to expand, by applying very mild constraints only to prevent rigid body motion, the von Mises stress scene shows stresses that are well below the yield stress of 200 MPa.
