Surface Time Histories

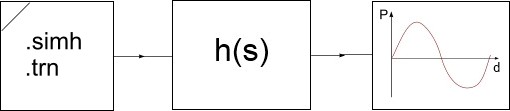

A Surface Time History is a collection of Point Time Histories that are drawn from the points that make up a presentation grid.

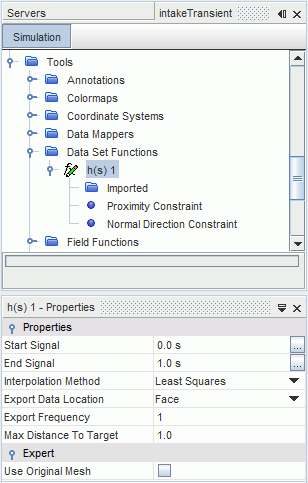

The h(s) node (with a numerical suffix) represents this type of data set function in the object tree. This type of data set uses CAE data mappers.

This node has properties and is subject to common menu items.

Surface Time History Properties


Start Signal	The start time for the mapped signal.
End Signal	The end time for the time sampling for this object. Clicking the property customizer button in the right-hand column activates a property customizer that lets you specify both the time value and the appropriate time units (hr, min or s). If you have multiple data set functions, you can vary the settings of this property to sample multiple time intervals from the simulation run.
Interpolation Method	Interpolation method when mapping data from source to target surface.
Export Data Location	Data location on target surface for mapped data.
Export Frequency	Frequency of time steps for which data is mapped.
Max. Distance To Target	Maximum distance to target for which a source point is projected to the target surface. Otherwise the source point is left unmoved.

Surface Time History Expert Properties


Use Original Mesh	Allows to use the original mesh for mapping.
	Activated	The original mesh is used.
	Deactivated	The current mesh is used.

The Surface Time History node has three child nodes. The Imported node allows to create derived transient surface data sets, and has no properties. Mapping constraints can be set through the Proximity Constraint node properties and Normal Direction Constraint node properties.
