Line Time Histories

A Line Time History is a collection of Point Time Histories that are drawn from the points that make up a line probe.

A line time history can then be processed using a Line Time Fourier Transform.

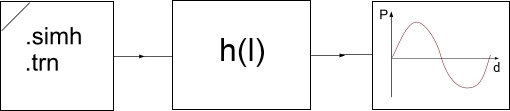

The h(l) node (with a numerical suffix) represents this type of data set function in the object tree. This node has properties and is subject to common menu items.

Line Time History Properties


Start Signal	The start time for the mapped signal.
End Signal	The end time for the time sampling for this object. Clicking the property customizer button in the right-hand column activates a property customizer that lets you specify both the time value and the appropriate time units (hr, min or s). If you have multiple data set functions, you can vary the settings of this property to sample multiple time intervals from the simulation run.
