Point Inverse Time Fourier Transforms

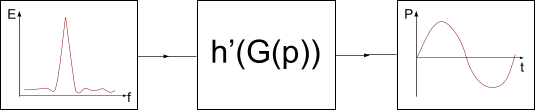

This inverse transform allows data to be transformed from the frequency to the time domain.

This transform is given by Eqn. (491)

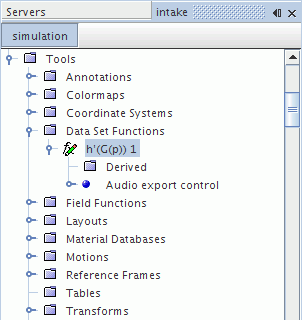

The h’(G(p)) node (with a numerical suffix) represents this type of data set function in the object tree. This node has properties and is subject to common menu items.

Point Inverse Time Fourier Transform Properties

Amplitude Function

Selects the method by which an Inverse Fourier Transform can be visualized as its magnitude or using its real or imaginary parts. The transform can be attached to both auto- and cross-correlation spectra.

Note	The function domain is limited to positive frequencies.

Real

The inverse of auto-correlation spectra has only a real part

Imaginary

The inverse of cross-correlation spectra has both real and imaginary parts

Magnitude

The magnitude of the spectra.

Added Mean Type

Selects the method that is used to generate the mean value added to the inverse Fourier transform.

Calculated

Generated by Simcenter STAR-CCM+.

User specified

Entered manually. A User Specified Added Mean node is added to the object tree.

Signal Repeats

Selects the number of times the signal is repeated (without introducing discontinuities). It is set to zero by default.
