Exporting Audio

You can export the time signal that the point inverse time Fourier transform generates as an audio file using the Export Audio... action on the derived data node pop-up menu.

Simcenter STAR-CCM+ currently supports the Windows Media Player format (.wav) for exported audio files.

The Audio export control node allows you to scale all audio exports from a point inverse time Fourier transform to the same maximum amplitude. This feature gives similar volume levels across all the signals.

Audio Export Control Properties


Normalization	Specifies whether normalization of exported audio data is required.
	No normalization	Normalization is not required.

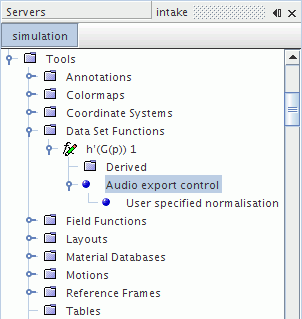

	User specified normalization	Activates normalization of all audio data to the same value. This option creates an additional User specified normalization node in the simulation tree.
