User Source Terms Within Adjoint

For certain cases where you provide source terms that supplement the flow equations, Simcenter STAR-CCM+ differentiates these source terms provided they are defined using field functions that use supported quantities and operators.

The cases for which Simcenter STAR-CCM+ differentiates user-defined source terms are those that apply one or more of the following models:

Coupled Flow
Coupled Solid Energy
SA Turbulence
Passive Scalar

User-defined source terms for these models are differentiated while computing the adjoint provided that:

The source terms are defined using field functions rather than expressions or tables or other methods.
The field function quantities, and operators used in the function, are themselves differentiable. For a list of differentiable field functions and operators, see the list at the end of Adjoint Cost Functions Reference.

As an example of a differentiable source term, consider the following simulation in which a user source term is specified for Coupled Flow:

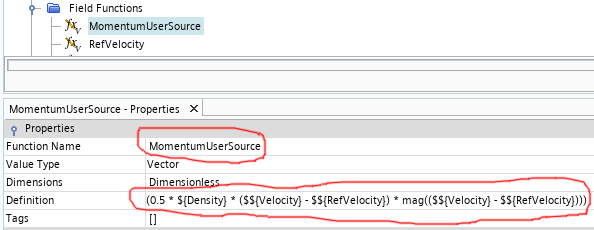

The definition of this user source term is set to use a field function, MomentumUserSource. Any user-specified derivative terms, such as Momentum Source Pressure Derivative, are ignored by the corresponding adjoint model. These derivative terms are still used by the primal flow model for solution stabilization.

The field function itself is defined using differentiable terms and operators (apart from simple specified quantities such as RefVelocity in this example, which is not differentiable):
