Visualizing the Element Type

Use the Element Type field function in Simcenter STAR-CCM+ to display the element type in a scalar scene.

Create a scalar scene and rename it to Element Type.

Edit the Element Type node and set the following properties:


Node	Property	Setting
Scalar 1	Display Mesh	Activated
Parts	Parts	Parts > Plate
Scalar Field	Function	Element Type

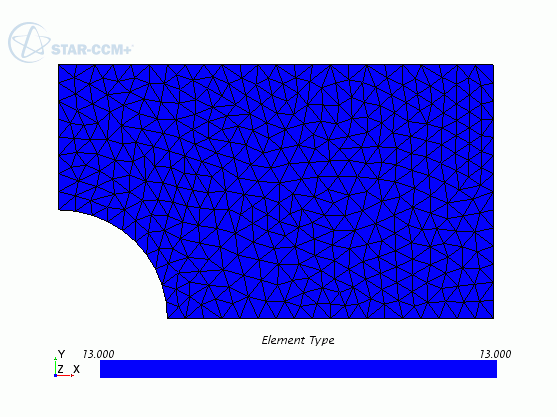

The scene appears as shown below:

All the solid elements in the mesh are of the same type. The number 13 corresponds to wedge elements with 6 nodes.

When you run the simulation, Simcenter STAR-CCM+ adds mid-side nodes to the mesh. As a consequence, the value that is displayed in the scene changes to 26, that corresponds to wedge elements with 15 nodes.
