Displaying Representations using the Scene Displayer

Each scene displayer node provides access to the mesh representations that currently exist.

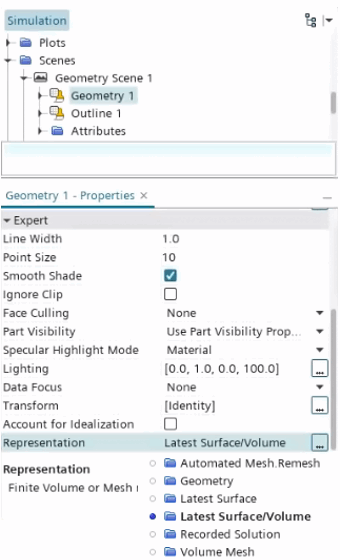

To change the current representation, select the scene displayer node of interest (for example, Geometry 1) and then click the Representation option in the expert Properties window. The currently available mesh representations are listed in the pull-down menu.

Select the appropriate mesh representation from the list and the scene updates with the new mesh. Any other scene displayer nodes (for example, Outline) for the same scene does not have the same representation selected for them - update these using the same technique as described above.
