Setting the Lagrangian Model

Set up a Lagrangian multiphase model to simulate stripping droplets.

To set the Lagrangian model:

Right-click Continua > Physics 1 > Models > Lagrangian Multiphase > Lagrangian Phases and select New > Free-stream Phase.
Rename the newly created Phase 1 to Droplets.

For the Lagrangian phase, Droplets, select the following models in order:


Group Box	Model
Particle Type	Material Particles Spherical Particles (selected automatically) Pressure Gradient Force (selected automatically)
Material	Multi-Component Liquid Species (selected automatically)
Equation of State	Constant Density
Optional Particle Forces	Drag Force
Optional Models	Two-Way Coupling Energy

Click Close.

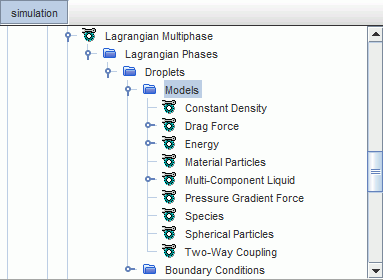

The simulation tree appears as shown below.

To set up the droplet components:

Right-click Multi-Component Liquid > Droplet Components and choose Select Mixture Components.
In the Select Mixture Components dialog, expand the Material Databases > Standard > Liquids node and select H2O (Water) and C2H6O (Ethanol).
Click Apply, and then Close.
Rename the Droplets Components > C2H6O node to C2H6O2.

To set the density and molecular weight values for ethylene glycol:

Select Droplet Components > C2H6O2 > Material Properties > Density > Constant and set Value to 1113.2 kg/m^3.
Select Droplet Components > C2H6O2 > Material Properties > Molecular Weight > Constant and set Value to 62.07 kg/kmol.
