Setting Region Conditions

This section describes how to set the Phase Source Option for the region.

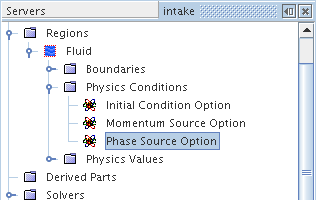

Following the selection of the VOF model, the node of every region that accesses this continuum contains an additional Phase Source Option sub-node.

The Phase Source is a region source. It specifies the rate at which a unit volume of the phase is added or removed per unit volume of the region (Volume/Time/Volume). In the Physics Conditions of a region, you can set up user-specified phase sources by activating the Phase Source Term property.

Setting Phase Sources

Once the Phase Source Option is activated, you can specify Phase Sources of each of the defined phases with the options of this scalar array profile.

To specify the Phase Sources:

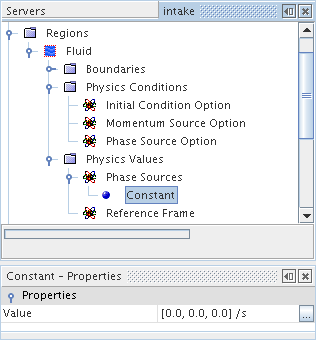

Option Constant defines sources uniformly for all phases.

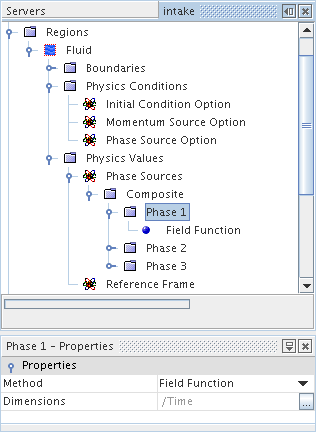

Option Composite defines the source on each phase separately.
