Visualizing and Reporting Contact

In general, collisions involving DEM particles are not the same as those involving Lagrangian parcels. With DEM particles, there can be more than one collision between particles or between a particle and a wall, if particles are modeled as spherical composites.

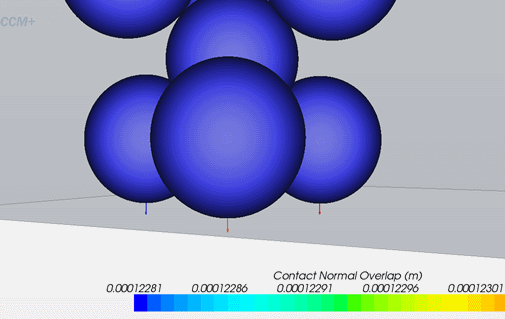

In the following illustration, arrows mark multiple collisions between a composite particle and the wall.

Simcenter STAR-CCM+ provides discretized collision information for visualization and reporting, through the following field functions:

Contact Damping Force
Contact Elastic Force
Contact Normal
Contact Normal Overlap
Contact Relative Velocity
Contact Tangential Overlap
