Custom Growth Rate

If the built-in choice of growth rates fails to provide sufficient control over the number of cell layers that are used for transition between sizes, a custom option can be selected instead.

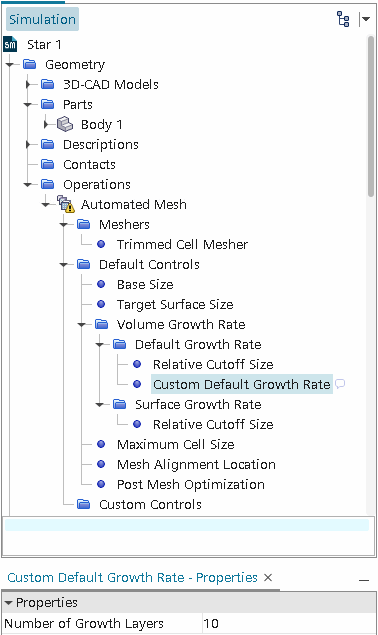

This option adds a custom growth rate child node whose single property sets the number of cell layers to use in size transitions. An example of this node for a custom default growth rate in the Reference Values section is shown below:

Properties of the Custom Growth Rate


Number of Growth Layers	This property sets the number of cell layers to use in the transition from one cell size to another.
