3D Sketch Creation Controls

When creating a point or a line in a 3D sketch, there are additional controls available to help you create and place these sketch entities in 3D space.

Create Point Controls

You can control the placement of points using the options in the following table.

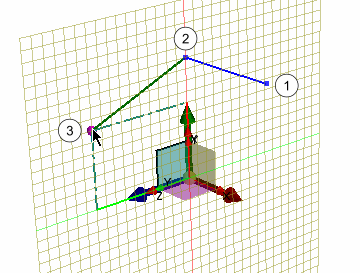

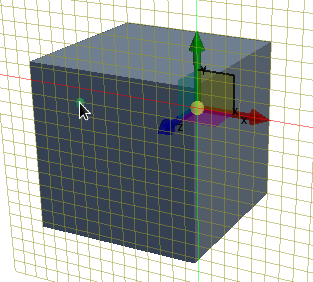

From Scene	There are two options available that defines the way you create points for a 3D sketch. When Pick a Plane() is active, you can create and place points using the sketch triad. To place a point, click the desired plane on the central triad. The current position coordinates for the point are displayed in the Current Coordinates group box. When Pick on Geometry is active, you can create points on a face or surface of an existing body. To create a point on an edge, hover the mouse pointer over an edge in the scene and then position the point anywhere on the highlighted edge. To create a point on a face, hover the mouse pointer over a face in the scene and position the point anywhere on the highlighted face.

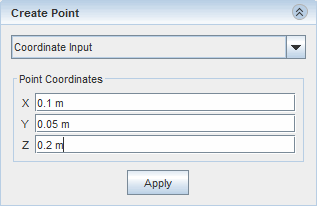

Coordinate Input	Places the point using coordinate inputs. To place a point, enter the X, Y, and Z coordinates for the point in the Point Coordinate group box, and click Apply.

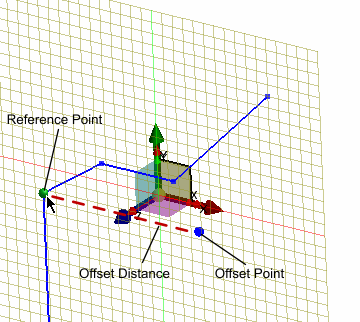

Offset From Point	Places the point by offsetting a reference point in the scene. To place a point, select a reference point in the scene, enter the offset distances in the X, Y, and Z fields, and click Apply. In the following example, the point is offset by a distance from the reference point in the X direction. The reference point is displayed in green.

Create Line/Spline Controls

These options control the placement and positioning of lines and splines in the 3D sketch.


Start/End Point	Specifies the start/end point for the line entity. Enter the X, Y, and Z coordinates for the point. When the first point in a line is active, the coordinates for its current position are displaced in the Start Point field. For all subsequent points, this information is displayed in the End Point field. These options only apply when drawing lines in a 3D sketch.
Current Point	Displays the current position of the point as you draw the spline in a 3D sketch. As you click and place the points in 3D space, the position of the next, current, point is displayed. This option only appears when drawing splines in a 3D sketch.
