Selecting the Physics Models for the External Casing

Physics models define the primary variables of the simulation and what mathematical formulation is used to generate the solution.

The external casing is modeled as an air continuum.

To select the physics models for the external casing:

Create a physics continuum and rename the Continua > Physics 1 node to External Casing.

For the physics continuum, Continua > External Casing, select the following models in order:


Group Box	Model
Space	Three Dimensional
Time	Implicit Unsteady
Material	Gas
Flow	Segregated Flow Gradients (selected automatically)
Equation of State	Constant Density
Viscous Regime	Turbulent Reynolds-Averaged Navier-Stokes (selected automatically)
Reynolds-Averaged Turbulence	K-Epsilon Turbulence Realizable K-Epsilon Two-Layer (Selected automatically) Wall Distance (Selected automatically) Two-Layer All y+ Wall Treatment (Selected automatically)
Optional Models	Segregated Fluid Temperature

Click Close.

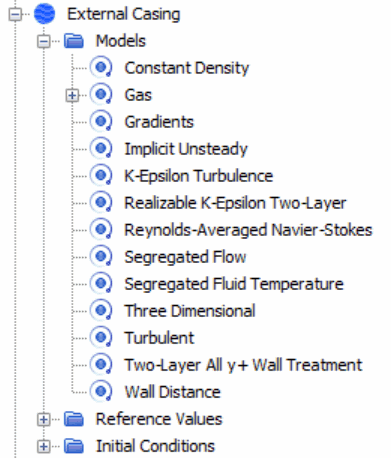

To review the models, open the External Casing > Models node.
Select the Regions > Battery Module: External Casing node and set Physics Continuum to External Casing.

Select the Regions > Battery Module: External Casing > Boundaries node and set the following properties:


Node	Property	Setting
Case.Inlet	Type	Velocity Inlet
Case.Outlet	Type	Pressure Outlet

Save the simulation.
