Generating the Volume Mesh

Create the volume mesh continua for the battery module.

To generate the volume mesh for the battery parts:

Right-click the Batteries > Battery Modules > Battery Module node.
Select Setup Battery Parts Meshing.

A new Mesh Battery Module node appears under the Geometry > Operations node.

To generate a separate volume mesh for the external casing part:

Right-click the Geometry > Operations node and select New > Mesh > Automated Mesh.

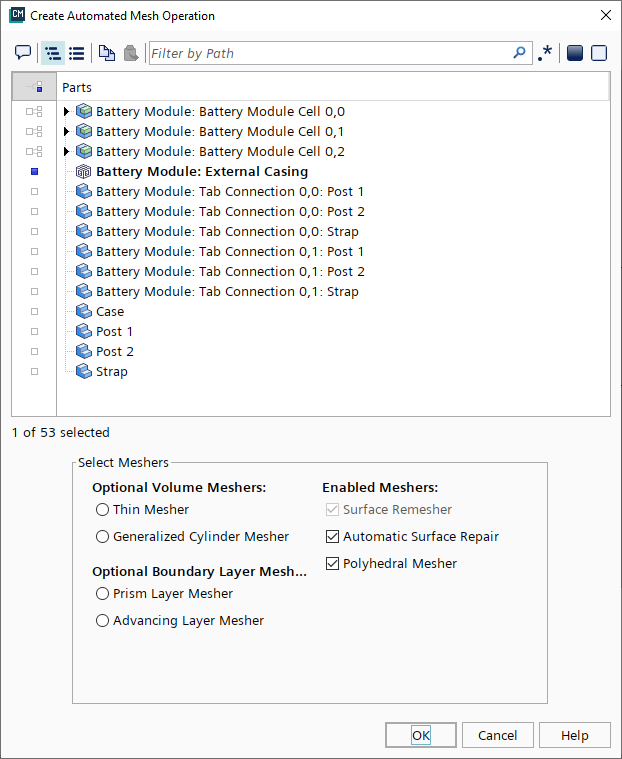

In the Create Automated Mesh Operation dialog, select Battery Module: External Casing and then activate the following meshers in order.


Group	Mesher
Surface Meshers	Surface Remesher
Optional Surface Meshers	Automatic Surface Repair
Core Volume Meshers	Polyhedral Mesher

Click OK.
The new Automated Mesh node is added under the Geometry > Operations node.
Rename the Geometry > Operations > Automated Mesh node to Casing.
Select the Geometry > Operations > Casing > Default Controls > Base Size node and set Base Size to 0.005 m.
In the Toolbar, click (Generate Volume Mesh).

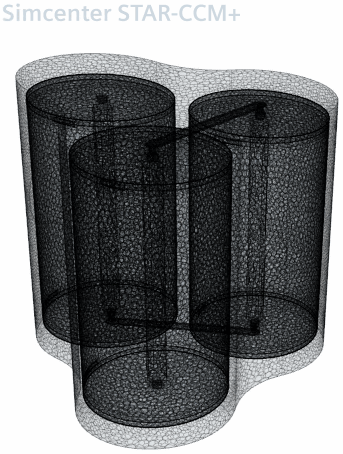

Visualize the volume mesh.

In the Vis tool bar, do the following:
1. Click (Create / Open Scenes) and select Mesh.
2. Click (Make Scene Transparent).
Save the simulation.
