Defining the Cell Configuration

Define the configuration of the cells within the battery module.

Configure the cylindrical battery cells using a staggered configuration with uniform spacing.

To define the cell configuration:

Create a battery module:

Right-click the Batteries > Battery Modules node and select New > TBM Battery Module.
Select the Batteries > Battery Modules > Battery Module > Module Configuration node.
In the Module Configuration - Properties window to the right of Battery Cells, click (Custom Editor).
In the Module Configuration - Battery Cells dialog, select Cylindrical Cell.
Click OK.

Once you specify the battery cell to use for module configuration, Simcenter STAR-CCM+ adds sub-nodes to the Module Configuration manager. These sub-nodes allow you to complete the setup.

Select the Module Configuration > Battery Module Configuration node.

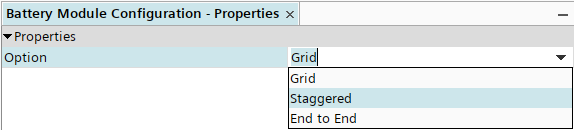

In the Battery Module Configuration - Properties window, set Option to Staggered.

By default, the cell orientation is set to Flip Every Other, with the even cells flipped. Set the Series Connection Flip Option:

Select the Module Configuration > Module Connection Values > Series Connection Flip Option node.
In the Series Connection Flip Option - Properties window, make sure that Option is set to Flip Starting With Second Cell.

To set the number of cells in the module and the spacing between cells:

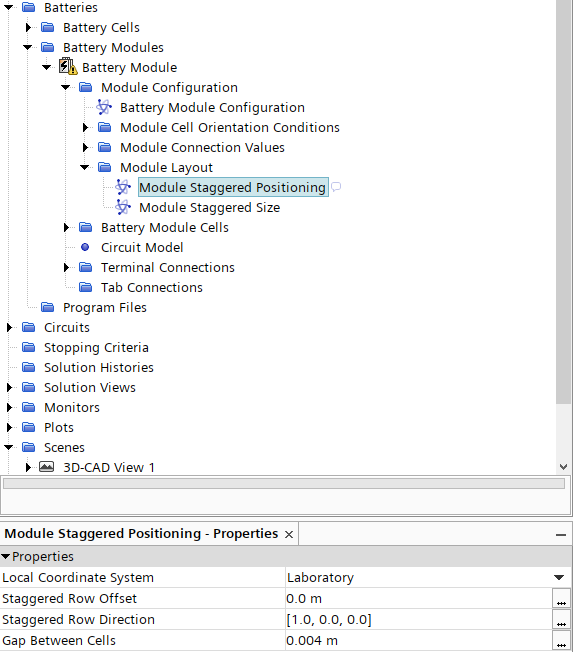

Select the Module Configuration > Module Layout > Module Staggered Positioning node.
In the Module Staggered Positioning - Properties window, set Gap Between Cells to 0.004 m.
Select the Module Configuration > Module Layout > Module Staggered Size node and set Number of Cells in Staggered Row to 3.
