Visualizing Named Faces, Edges, and Vertices

Named entities (faces, edges, and vertices) are grouped under the Bodies > Body > Named [Entity] node in the 3D-CAD object tree. Named faces in imported CAD geometries (for supported formats only) are maintained and added to the Named [Entity] node at the end of the import process.

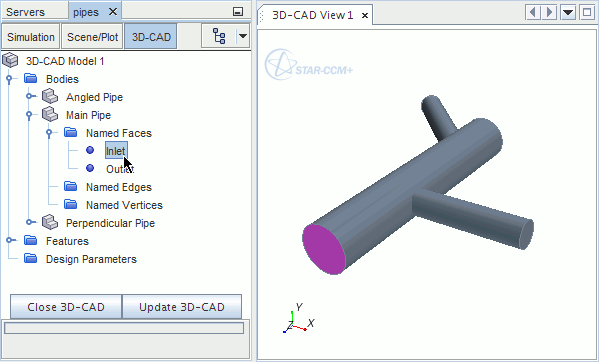

In the example below, the named faces of Main Pipe are shown.

Clicking the nodes highlights the relevant entities in the 3D-CAD View scene.

Multiple entities of the same type (such as faces) that share a name are stored under one node in the object tree and appear in the 3D-CAD View scene when you select the node.

Editing Names From the 3D-CAD Feature Tree

To rename an entity that is listed:

In the 3D-CAD feature tree, right-clicking the desired face/edge/vertex name node and select Rename...
Enter the new name in the inline editor.
Press <Enter>.

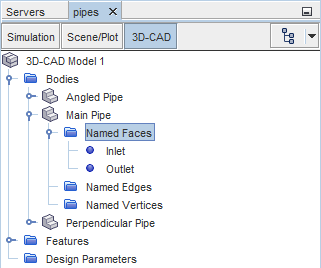

Names that you edit this way are not sorted in alphabetical order. To sort the face names by alphabetical order:

Right-click on the Named Faces manager node and select Refresh.

Removing Names From Entities

To remove a name from an entity:

In the 3D-CAD feature tree, right-click on a face/edge/vertex name node and select Delete.
