Selecting Units for FT Field Functions

Simcenter STAR-CCM+ calculates the dimensions for the FT field functions and provides a list of suggested units that are based on these dimensions.

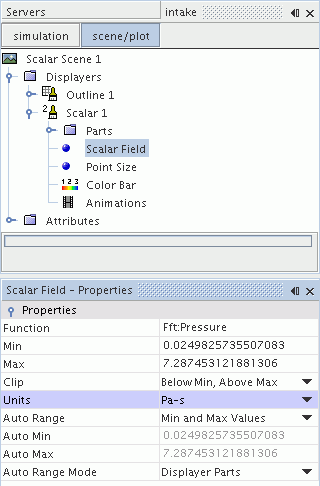

The units for the FT field function are located in Properties window of the Displayers > Scalar 1 > Scalar Field node of the scene.

In the example that is shown above, Simcenter STAR-CCM+ calculated the units using the dimensions for the Fft: Pressure field function (Pressure and Time). The suggested units are shown below.

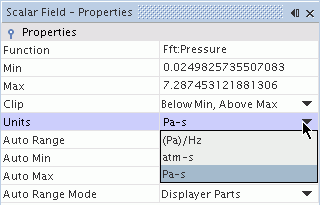

Select the most relevant units from this list. In this particular example, (Pa)/Hz is the most suitable choice.
