Selecting the Physics Models

The Topology Optimization model determines the optimal distribution of the material within the topology optimization domain by evolving a level-set equation. You use this model together with the Topology Physics model and the Adjoint model.

With the Adjoint model selected, the Topology Physics model produces the derivative of the adjoint cost functions with respect to the material distribution. You associate the solid phase of the Topology Physics model with the region in which the topology optimization is performed.

The steady flow of water through the channels is turbulent and modeled using the K-Omega SST (Menter) turbulence model. Since the topology optimization is adjoint-based, you are required use the Coupled Flow model.

To select the physics models:

For the physics continuum, Continua > Physics 1, select the following models in order:


Group Box	Model
Space	Three Dimensional (selected automatically)
Material	Liquid
Flow	Coupled Flow Gradients (selected automatically)
Equation of State	Constant Density
Time	Steady
Viscous Regime	Turbulent Reynolds-Averaged Navier-Stokes (selected automatically)
Reynolds-Averaged Turbulence	K-Omega Turbulence SST (Menter) K-Omega (selected automatically) Wall Distance (selected automatically) All y+ Wall Treatment (selected automatically)
Optional Models	Adaptive Mesh Solution Interpolation Adjoint Adjoint Frozen Turbulence (selected automatically)
Adjoint Flow	Adjoint Flow
Optional Adjoint Models	Topology Optimization Topology Physics (selected automatically)

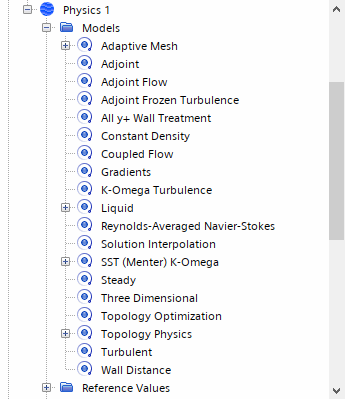

To review the models, expand the Physics 1 > Models node.
Select the Topology Physics node and make sure that Brinkman Penalization Magnitude is set to the default value of 1.0E7 kg/m^3-s.
This parameter controls the flow suppression in the solid material cells. Typically, you use the default value. Very large values of the Brinkman Penalization can hinder convergence.
Select the Topology Physics > Solid Phase node and set Regions to Topology Optimization Domain.
Save the simulation.
