Overview of Fan Performance Curves

A fan performance curve describes the performance of a fan under specific operating conditions.

The fan performance curve typically specifies the pressure rise across the fan as a function of volumetric flow rate, for a standard fluid temperature and fan rotation rate. Fan manufacturers provide this information for each fan.

When you model a fan in Simcenter STAR-CCM+, you specify the appropriate fan performance curve. To obtain the fan performance curve for a particular fan rotation rate and fluid temperature, you can make your own measurements of the fan under the appropriate conditions. Alternatively, Simcenter STAR-CCM+ can derive it from the manufacturer-supplied fan performance curve: Simcenter STAR-CCM+ adjusts the fan performance curve using classical fan laws to compensate for the different fan rotation rate and fluid temperature.

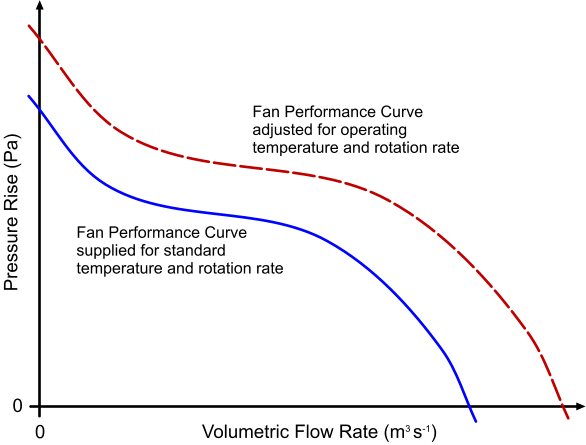

An example of a manufacturer-supplied fan performance curve and the same fan performance curve that is adjusted for particular operating conditions is shown below.
