Working with the Fan Solver

The Fan Solver node contains properties that control how the fan momentum source is solved. You can specify the fan solver property values to suit your simulation.

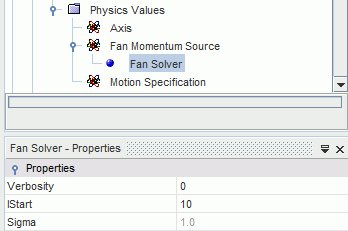

You set the fan solver properties on the Regions > [Region] > Boundaries > Physics Values > Fan Momentum Source > Fan Solver node.

Fan Solver Properties


Verbosity	This setting controls the printing of diagnostic data to the Output window. The settings are:
	0	Prints no information about the fan model.
	1	Prints deviation of the swirl velocity from the target, the pressure rise target for the current non-reversed volume flow rate through the fan, and the current pressure rise.
IStart	Specify the iteration number at which to start solving for the fan simulation. This setting lets you delay the start of the fan simulation while your simulation solves for other components. The default is 10, as the solution can be unstable for the first few iterations.
Sigma	Specify the factor that is used to match the target for the swirl. This value is $σ$ in Eqn. (5037).
