Specifying the Fan Curve Temperature Scaling

You can modify the fan performance curve in response to temperature.

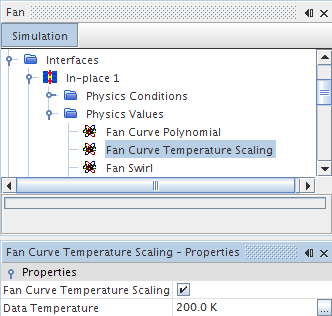

You specify the fan curve temperature scaling properties under the Physics Values > Fan Curve Temperature Scaling node.

See Scaling the Fan Performance Curve.


Fan Curve Temperature Scaling	Adjusts the fan performance curve according to the fluid temperature used in the simulation.
	Activated	Scale in response to temperature.
	Deactivated
Data Temperature	Specifies the temperature at which the fan curve table or polynomial was measured. This value is not used unless Fan Curve Temperature Scaling is activated.
