Selecting Source and Target Surfaces Using the Tree

This section describes how to select source and target surfaces.

To select a source surface:

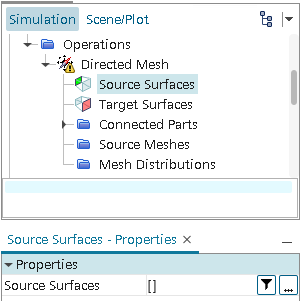

Select the Directed Mesh > Source Surfaces node and in the Properties window, click the ellipsis button to the right of Source Surfaces.

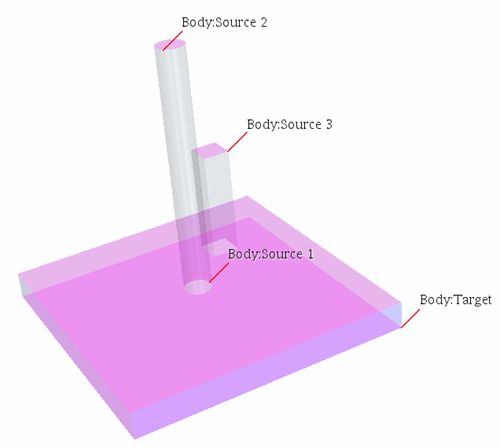

In the Source Surfaces - Source Surfaces dialog, select at least one surface to represent the source surface(s). For M-1 sweeping, discontiguous source surfaces can be used which are at different sweep levels.

To select a target surface:

Select the Directed Mesh > Target Surfaces node and in the Properties window, click to the right of Target Surfaces.
In the Target Surfaces - Target Surfaces dialog, select at least one face to represent the target surface.

To remove any faces from source or target surfaces:

Select the Source Surfaces/Target Surfaces node.
In the Properties window, click for Source Surfaces/Target Surfaces.
In the object selection dialog, deselect any surfaces that are not required as a source or target surface.
