Using the Add Option

The add option allows you to add cells to the existing cell set based on all the cells in the model.

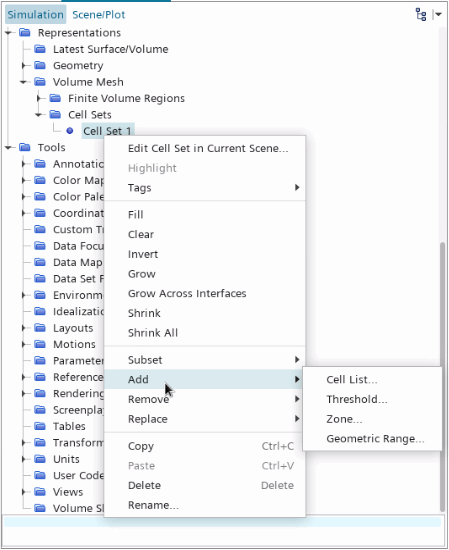

To access the cell set add option, right-click the desired cell set node and select Add from the pop-up menu:

Four different add options are allowed:

cell list - Add to the set based on cell index ID’s or offsets.
threshold - Add to the set based on a scalar threshold.
zone - Add to the set based on a zone.
geometric range - Add to the set based on a geometric range.

An example before and after snapshot of an add operation using a zone is shown below:

In this example, the original cell set contained a portion of the model cells. The add operation using a zone was used to select an additional area below the original to add to the set.
