Editing a Cell Set in the Current Scene

In order to allow multiple set operations to be performed without the dialog closing each time, a cell set can be edited using an in-place dialog as part of the current scene. The same global and Boolean operations as described above are allowed.

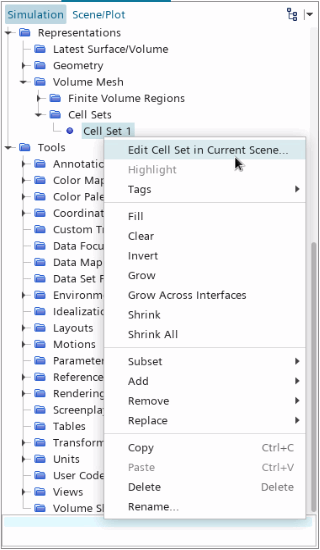

To edit the cell set in the current scene, right-click the cell set node and select Edit Cell Set in Current Scene... from the pop-up window:

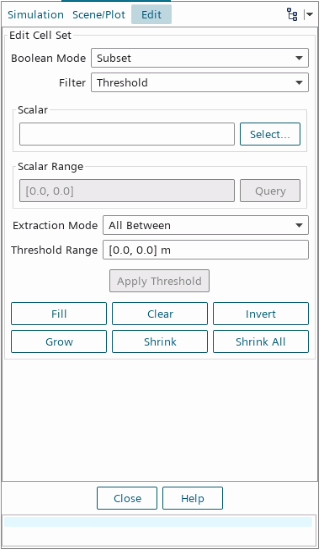

The in-place Edit Cell Set dialog opens:

To perform Boolean operations, such as Subset, Add, Remove or Replace, select the appropriate Boolean Mode option. The Filter option determines whether a Cell List, Threshold or Zone is used. Depending on the latter option, the Filter Options groupbox displays the appropriate selections to complete the operation. Press Apply to perform the change.

To perform global operations, the Fill, Clear, Grow, Shrink and Shrink All buttons can be pressed.
