Using the Replace Option

The replace option allows you to replace the existing cell set with a new one based on the cells in the entire model. Cells that are contained in the original set can be reselected if desired.

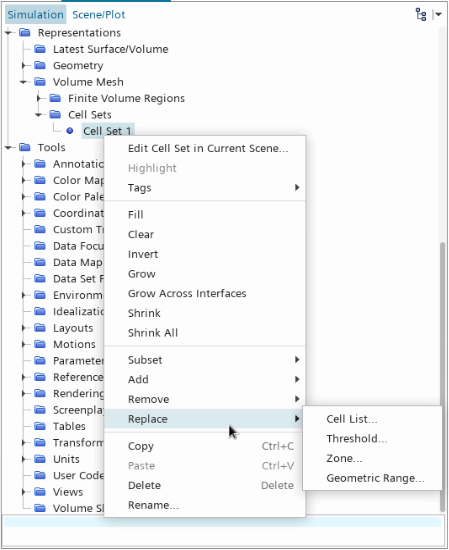

To access the cell set replace option, right-click on the desired cell set node and select Replace from the pop-up menu:

Four different replace options are allowed:

cell list - Replace cells based on cell index ID’s or offsets.
threshold - Replace cells based on a scalar threshold.
zone - Replace cells based on a zone.
geometric range - Replaced cells based on a geometric range.

An example before and after snapshot of a replace operation using a zone is shown below:

In this example, the original cell set contained a portion of the model cells. The replace operation using a zone was used to select a new set containing some cells below the original set, as well as the right half portion of the original set.
