Splitting Faces by Edge Projection

The Split Faces by Edge Projection feature allows you to split a face by imprinting edges onto it.

To split a face by edge projection:

In the 3D-CAD View scene, select a face that you want to split.
Right-click the face and select Repair Tools > Split Faces by Edge Projection.

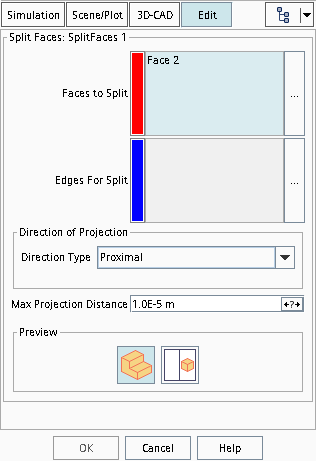

The Split Faces panel appears on the left of the Graphics window.
In the Graphics window, select the edge that you wish to project onto the face.
Choose the option for Direction Type. For this case, the edge lies on the same plane as the body surface, the default options are appropriate.
For cases where you want to project the edge on another plane. See Split Faces Panel.

Once you have selected the appropriate options, a preview appears showing the projected edge onto the face.
Click OK to split the face.
The face is split using the edge that you specified.
