Calculating the Surface Area of a Part

When a volume representation is active, the surface area of a part such as a plane section, a cylinder surface, a sphere, or even an isosurface can be calculated using a surface integral report with a value of 1.

To calculate the surface area:

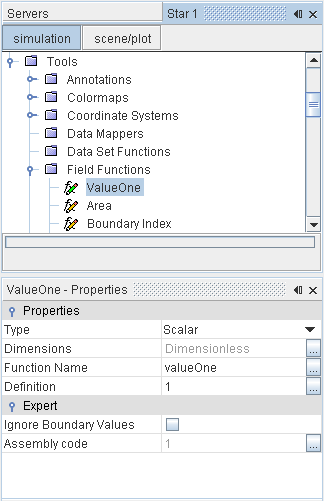

Create a user-defined scalar field function with the constant value of 1. Such a function is shown below.
Create a surface integral report using the right-click menu of the top-level Report node. Set the Parts property of the new report node to the part whose surface area you require, and set the Scalar Field Function property to the user-defined field function created in the previous step. An example of such a report is shown below.
Right-click the newly created report node and choose Run Report. The surface area of the part is displayed in the Output window.
