Reading an External File

An arbitrary section, arbitrary probe, or constrained plane section can read data from an external file (STL or VTK).

Note	Before importing the data for a constrained plane section, create an arbitrary constrained planar section.

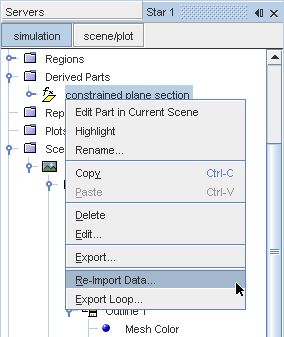

To access this file, right-click the node of the derived part and select Re-Import Data...

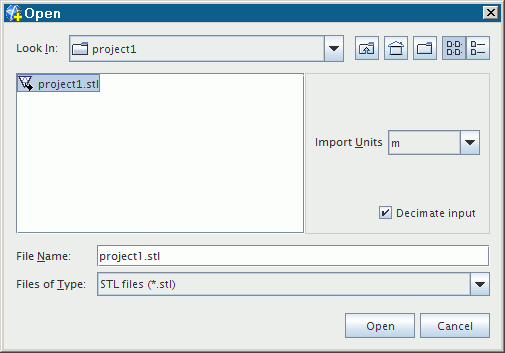

Select an available file from the Open dialog, then click Open. This action adds the data from the specified file.

The Decimate input checkbox, which is activated by default, facilitates creation of an arbitrary section.
