Exporting to an External File

You can export the data of derived parts to an external file in STL or VTK format.

Both file formats can be binary or ASCII, and STL files are a universal method of transferring surface data using the least possible number of triangles.

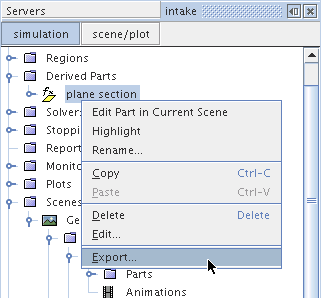

To export the data of a derived part, right-click the node of the part in the object tree and select Export...

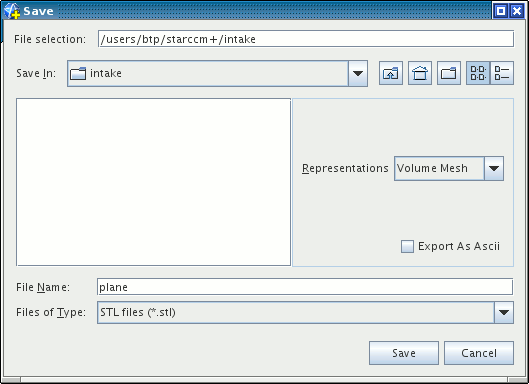

In the Save dialog, enter a name for the .stl or .vtk file and ensure that the correct representation is selected in the Representations menu. By default, the file is saved in binary format. To save the file in ASCII format, tick the Export as Ascii checkbox.

For a constrained plane section, arbitrary section or arbitrary probe, the file that this action generates is different from the imported file, as only the extracted triangle data is exported. When streamlines are exported as an STL or VTK file, they are defined as thin ribbons.

The derived part must have one or more input parts, otherwise Simcenter STAR-CCM+ considers it empty. An attempt to export it fails with a message like this one:
