Defining Implicit Sections

Implicit sections are derived parts that are based on planes or geometrical shapes, which can cut through one or more volumes or surfaces.

These parts are implicit because they are functions of coordinates, rather than combinations of mesh cells.

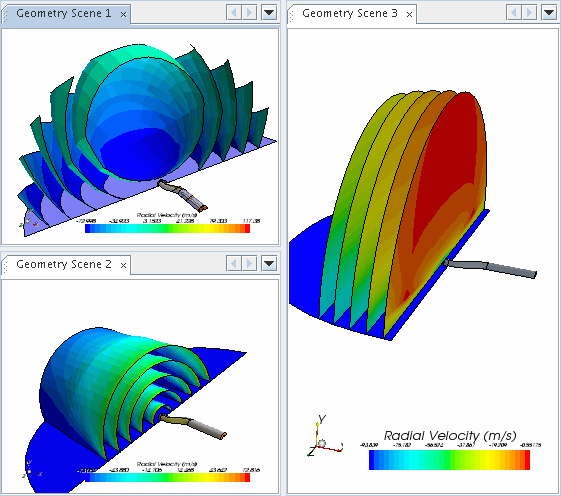

Within an implicit section part, you can create multiple instances of the section by defining offset copies of the original. This feature gives you the benefit of sampling data from multiple sections while you still work with just one part.
