Volume Mesh Pattern

To generate an identical volume mesh for all segments in periodic geometries, use the Volume Mesh Pattern operation.

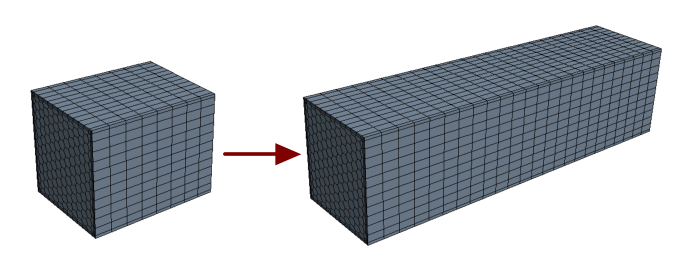

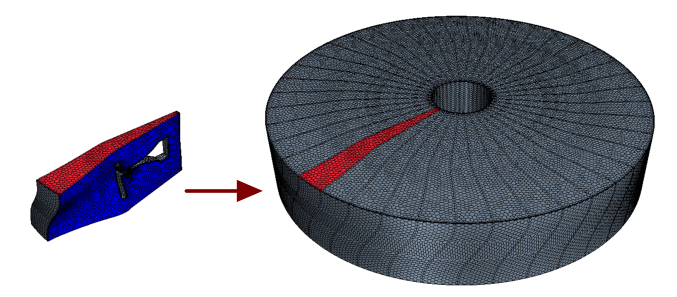

The Volume Mesh Pattern operation uses the transform information from the Linear Pattern operation or the Circular Pattern operation to transform the input part's volume mesh, resulting in an identical volume mesh in all segments.

To create a pattern of the volume mesh:

Generate a volume mesh for the periodic part using the desired mesh settings.
Pattern the desired part using one of the part pattern operations. See Part Pattern.
Assign the patterned parts to regions.
Right-click the Operations node and select New > Mesh > Volume Mesh Pattern.
Use the parts that are created by the pattern operation as the input for the Volume Mesh Pattern operation.
Execute the Volume Mesh Pattern operation.

The volume mesh is patterned. Contacts are automatically created for patterned parts when they are created. See Part Pattern: Contact Creation for Part Patterns.
