Attached Shells Creator

The Attached Shells Creator operation creates attached shell parts from parts and part surfaces.

Unlike standard shell parts, an attached shell part is connected to the input part and its respective surfaces. If you edit an input part, you can automatically update the attached shell part by re-executing the operation, without affecting any boundary conditions or mesh settings applied to the shell part. For more information, see Creating Shells from Parts

This operation automatically creates:

contacts between the input surfaces and their attached shell part surfaces
contact between connected shell parts

Before you execute the operation, Simcenter STAR-CCM+ adds the expected output parts, part surfaces, and part curves to the simulation tree. Any unrequired elements are deleted after you execute the operation. Any part points available on the input parts and part surfaces are also copied to the attached shell part.

Attached Shell Creator Properties

Input Parts: Specifies the parts used to create the attached shell parts.
Part Surfaces: Specifies the part surfaces used to create the attached shell part surfaces.

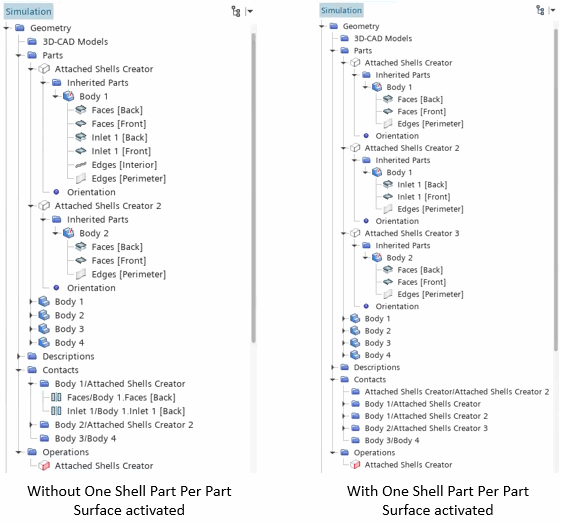

One Shell Part Per Part Surface: When activated, creates individual shell parts for each selected input surface. Each attached shell part contains the corresponding shell surfaces.
