Inherited Parts

Inherited parts are the input parts to an operation, which are categorized separately from any new surface and curves that the operation creates. This categorization makes it easier to find and apply the input parts to other operations and mesh controls.

The following operations generate inherited parts:

Surface Wrapper (with the Per-Part Meshing property deactivated)
Extract Volume
Unite Parts
Intersect Parts
Subtract Parts

Example of Using Inherited Parts for Mesh Controls

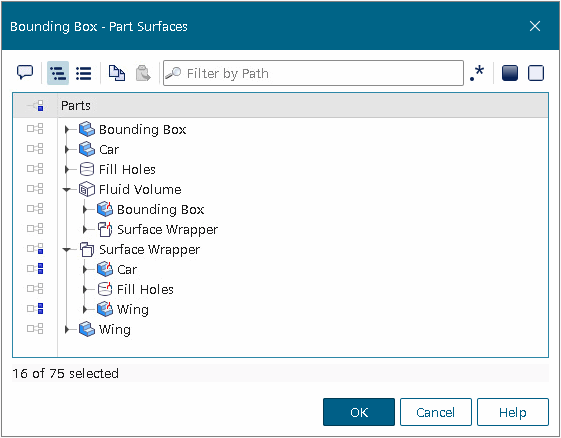

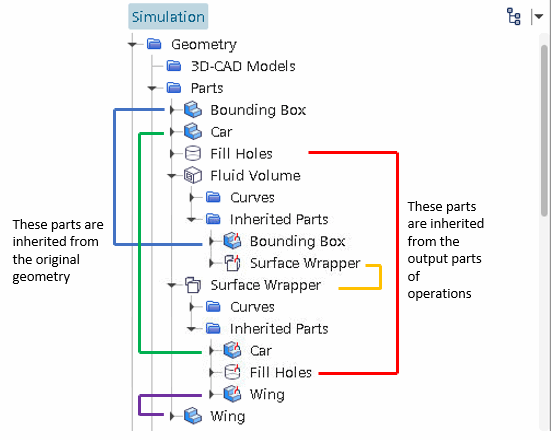

The following example uses the output part from a subtract operation that has several inherited parts. The following image illustrates this example and how the inherited parts are organized.

When using this part as the input part for an automated mesh operation, the categorization of inherited parts makes it easier to find and apply custom controls to the sensor surfaces.
